SYSCO ABC Full head die cutting press Expand

SYSCO - HBC for Honeycomb Cardboard

New

Automatic Full Head Die Cutting Press

More details

SyscoSysco

Learn more Contact us

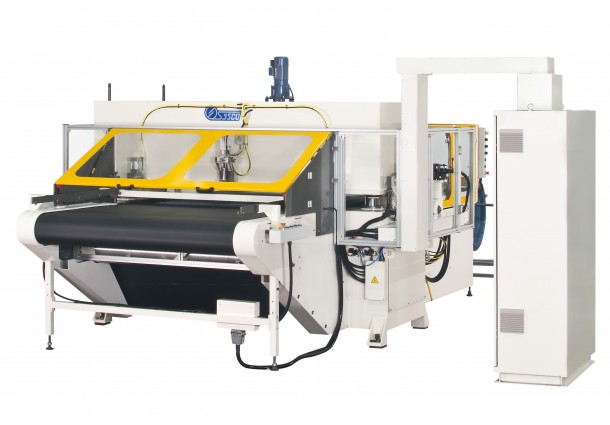

HBC for Honeycomb Cardboard

Automatic Full Head Die Cutting Press

Feeding material by motorised conveyor belt
Clamping beam feeding system with mechanical or motorised stops
Speed up to 30m/min with accuracy positioning of + / - 0.2mm per servomotor
Material coming from rolls or sheets

General description

  • Four columns press with mechanical balancing system - SYSCO exclusive
  • Cutting power from 30 to 400 Tons
  • Cutting area from 900 x 600 to 2500 x 1200 mm
  • Cutting stroke from 250 mm
  • 4 manual or motorised mechanical stops accuracy +/- 0.01 mm
  • Trough cutting or kiss cutting on Picard steel plate 60 HRC accuracy +/- 0.01 mm
  • Slow down speed of the bridge: 10 mm before touching the material
  • Quick change of dies
  • Touch screen control in different languages
  • Use of electrical, hydraulic and pneumatic standardized
  • Safety guards protection and / or photocells Class 4
  • Meets C.E. standards

Options (lamination station, waste box, male and female dies, heating the upper plate, printed mark detection, etc..) are all possibilities to meet your needs.
