> >>MILLER WELDMASTER - TRIAD Extreme High Speed
MILLER WELDMASTER - TRIAD Extreme High Speed Expand

MILLER WELDMASTER - TRIAD Extreme High Speed

New

Portable Wedge Welding Machine

More details

Miller WeldmasterMiller Weldmaster

Learn more Contact us

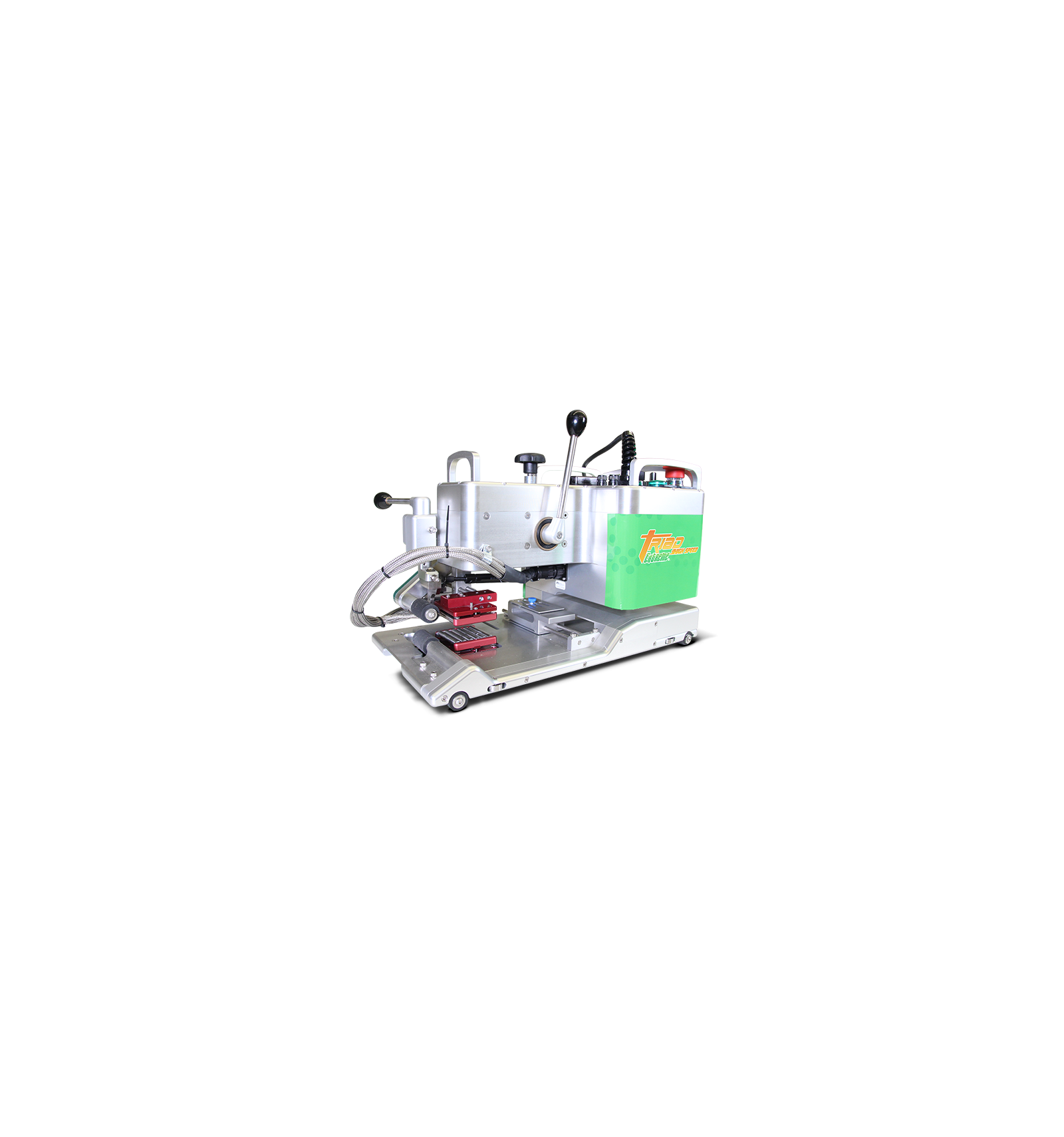

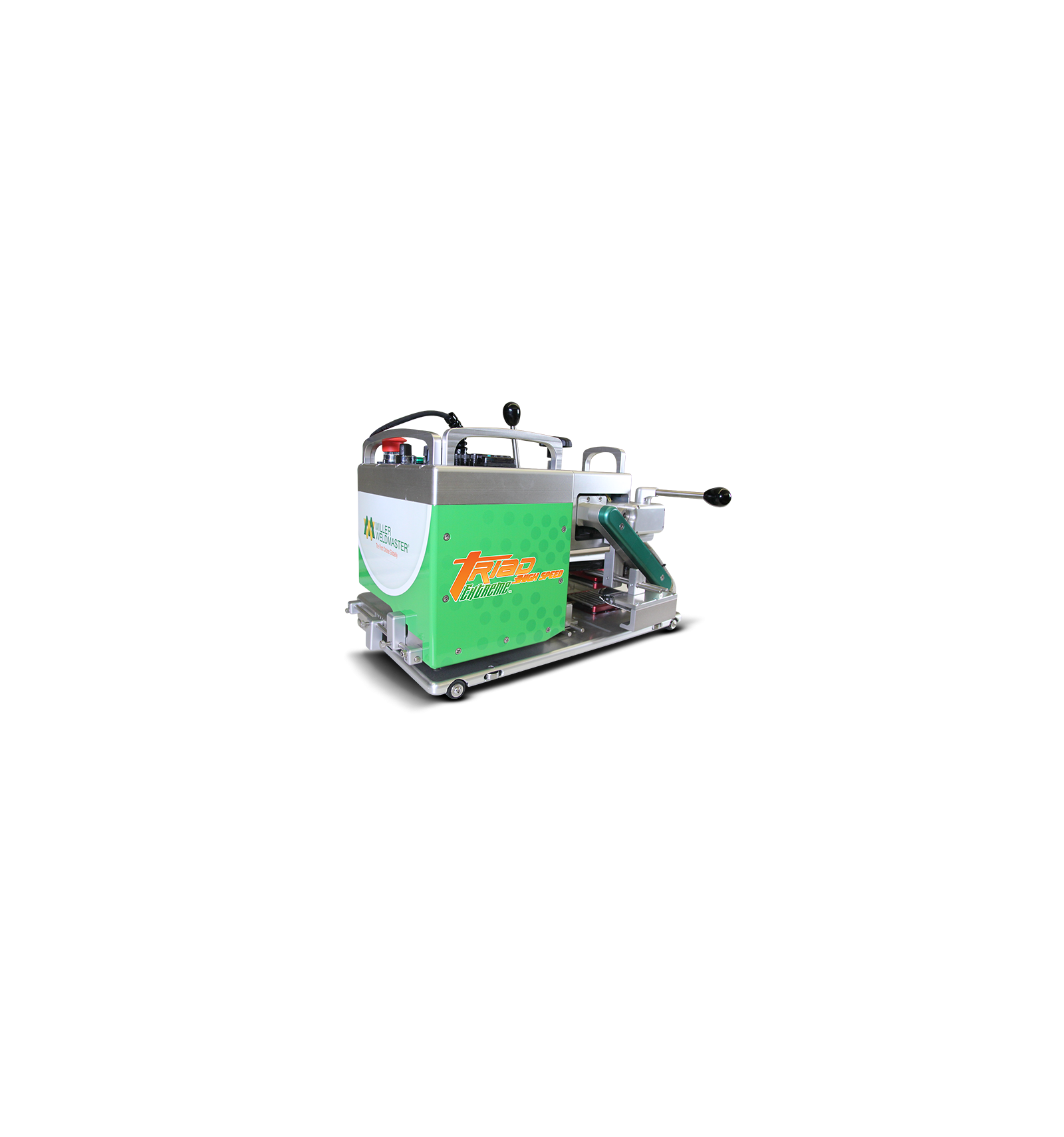

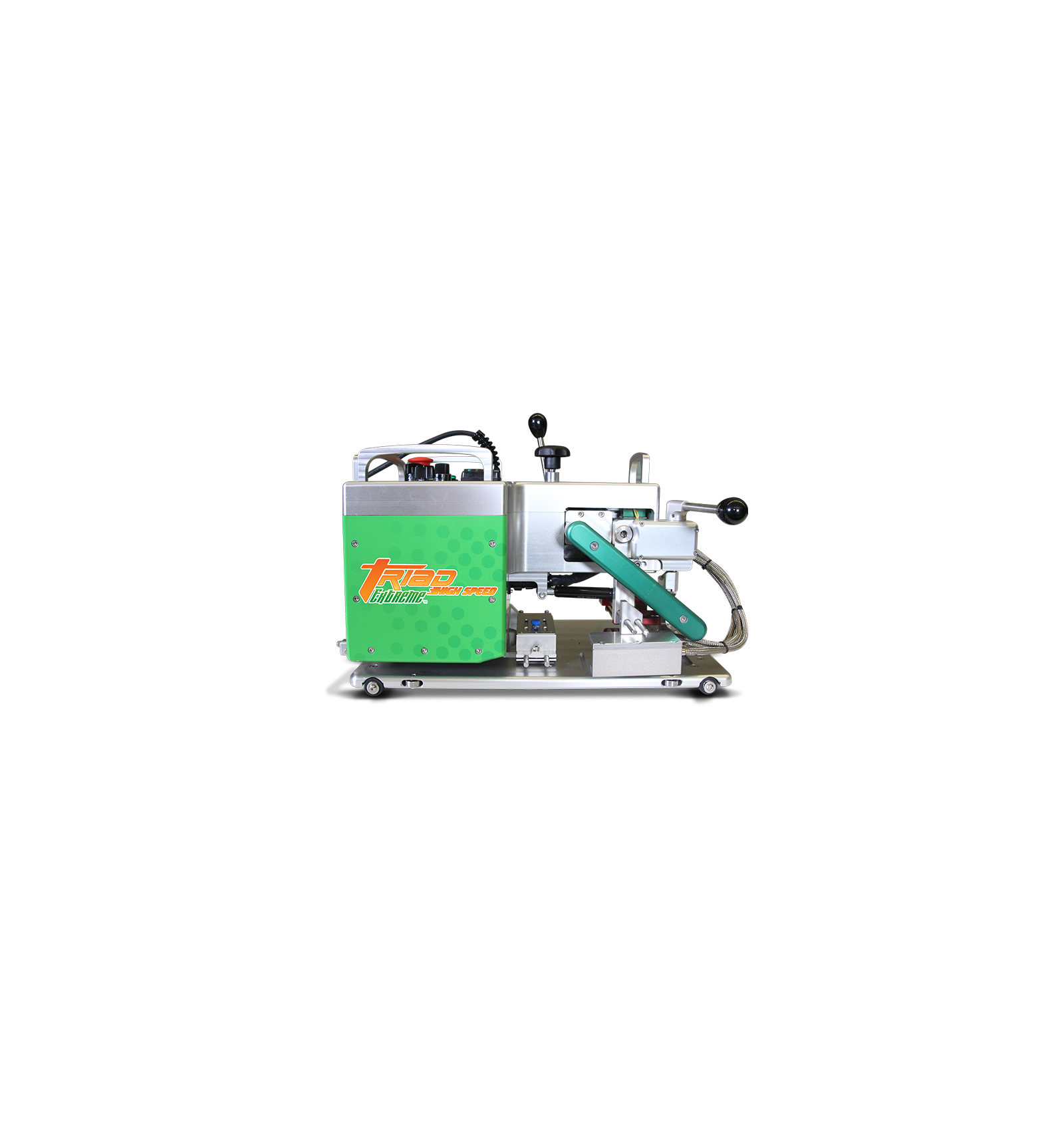

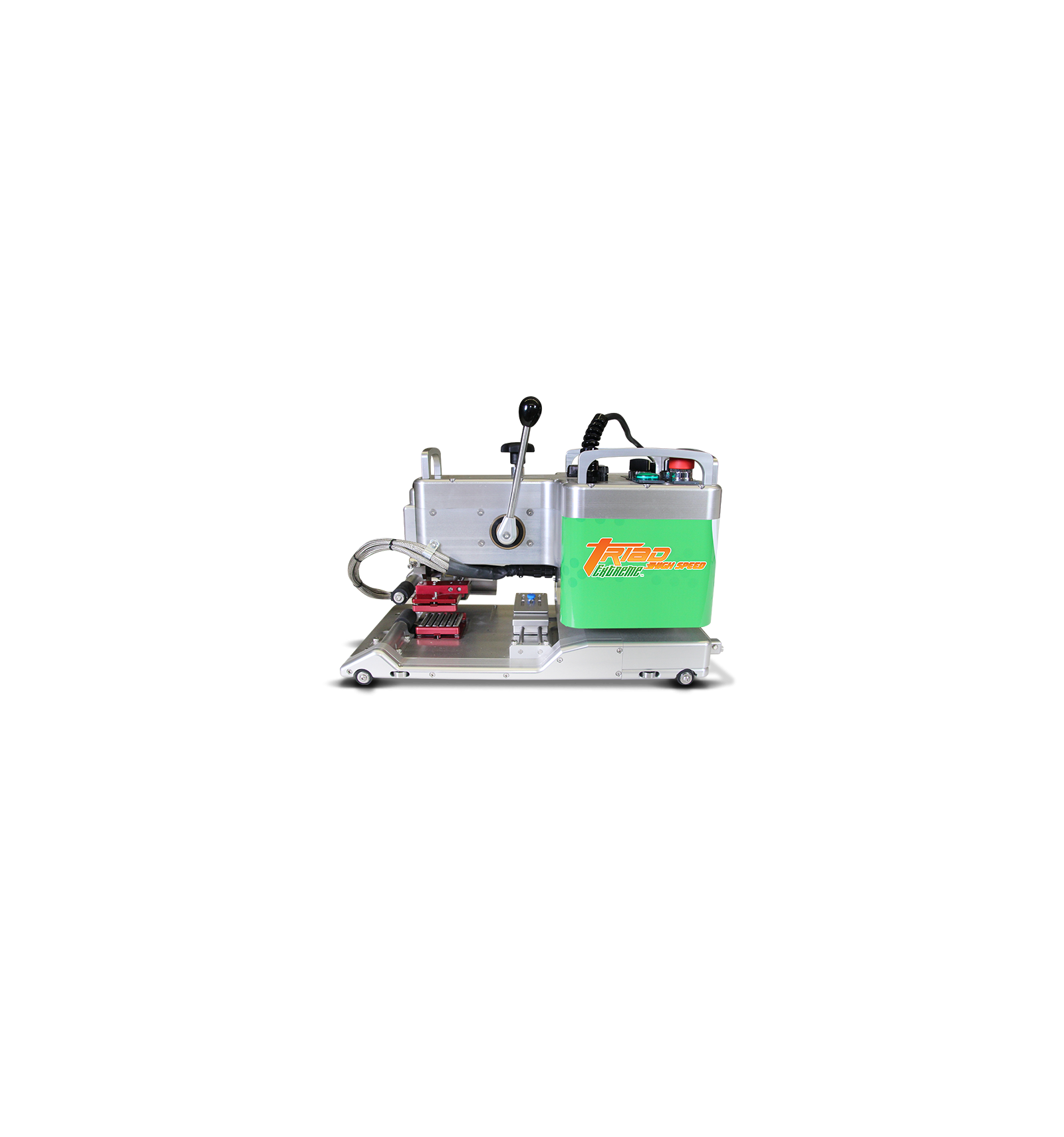

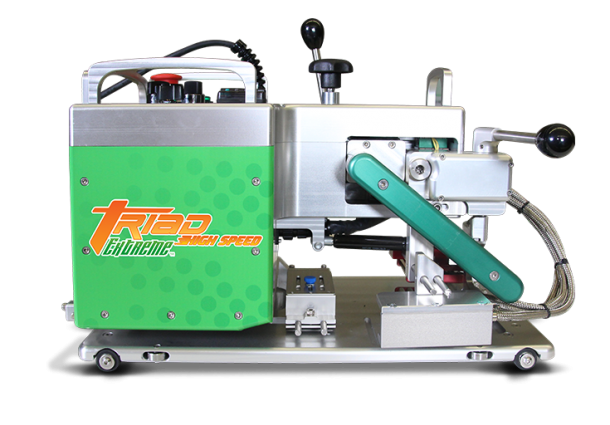

Portable Hot Wedge Welding Machine - Triad Extreme High Speed

High-speed industrial fabric welding machine, ready for stationary use or on table track.

The Triad Extreme High Speed is designed to meet a wide range of industrial fabric welding needs, offering speed, precision, and ease of use. It can perform different types of welds: j-seams, pocket hems, simple hems, overlaps, keder, and peeling. The TRIAD Extreme High Speed combines all the advantages of the SPEC High Speed with TRIAD’s proven efficiency and maintenance benefits.

Technical Specifications

  • Power: 230 Volts - Single Phase - 8.0 Amp
  • Power consumption: ~1.2 kW
  • Maximum temperature: 500°C
  • Dimensions: W 0.254 m x L 0.508 m x H 0.305 m
  • Weight: 25 kg machine only / 39 kg crated
  • Seam width: 10-50 mm

Features & Benefits

  • High-speed design for rapid production
  • Excellent visibility of the welding area
  • Pivoting welding iron for easy cleaning
  • Stationary use or automatic travel on track for hands-free operation
  • Available options: DOREY-made guide rails

WELDING TYPES

J-seam

Hem with rope

Pocket hem

Hem with pocket

Simple hem

Hem

Overlap

Overlap

Keder

Keder

Peeling

Peeling

Tarpaulin - Tent - Marquee

Tarpaulin - Tent - Marquee

Aerospace - Naval

Aerospace - Naval

Pool - Inflatable

Pool - Inflatable

Geomembrane - Geotextile - Roof Waterproofing

Geomembrane - Geotextile - Roof Waterproofing
